Toggle
This view control allows to change a logical column value in a data grid or in a card in one mouse click.
To make this control more informative, specify the ON and OFF toggle Captions, select the Size and Style of these editors. The control appearance depends of the selected color scheme.
There are Large, Medium, Small and Extra Small sizes of toggles. The screen below demonstrates toggles of available sizes in the Default color scheme.

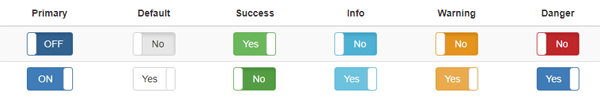

Available styles are: Primary, Default, Success, Info, Warning, Danger. The screen below demonstrates available toogle styles in the Default color scheme.

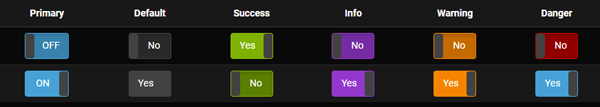

The same styles in a dark scheme:
Align
Allows you to specify the alignment of the control. Possible values are Default, Left, Right, and Center.
Inline styles
Use this field to set formatting options to be used inside the style attribute of the element. For example, to set the font color and the background color for a control, place the following string to Inline styles:
color: red; background-color: yellow;
Custom attributes
This property allows you to add simple metadata to individual elements, largely for the purpose of providing information to make JavaScript functions easier. Such attributes can be later handled in client-side events. For example, to add several custom attributes to an editor, enter the following string into the Custom attributes edit box:
data-city="Boston" data-lang="js" data-food="Bacon"
It is recommended to prefix all custom attributes with data- to keep the result document compatible with the HTML5 requirements.
Null label
This property allows you to define how NULL values are represented for this column. By default the value of this property corresponds to the one defined at the project level. You can specify a custom value for a certain column (for example, "Not selected", "Not available" "Not supported", etc.) if necessary.
